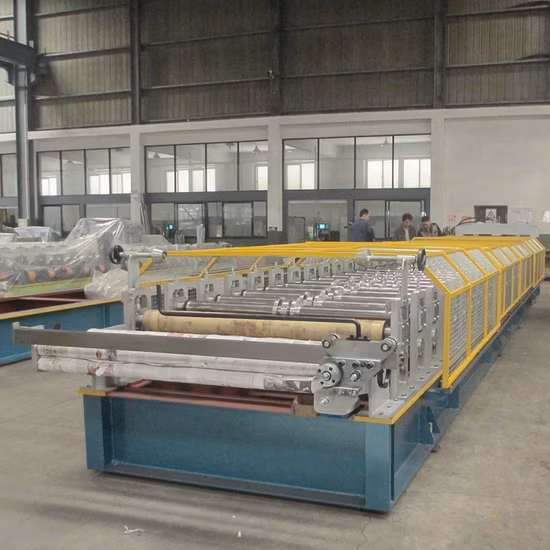

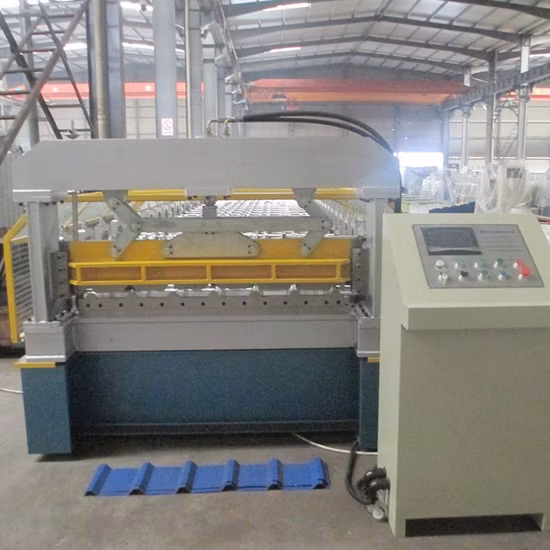

Factory Prices Making Building Material Wall Panel Metal Roofing Sheet Roll Forming Machine for Sale

Overview

Basic Info.

Usage	Roof, Wall
Transmission Method	Electric
Yield Strength	Q235
Main Motor	7.5kw
Control System	PLC Control
Guarantee	1st Year for Free, Lifetime Services
Brand Name	Zhongyuan
Thickness	0.3-0.7mm
Coil Width	1250mm
Name	Improve Structure Main Product Glazed Roof Panel S
Machines Weight	About 10t
Transport Package	40gp Container for One Machine
Trademark	zhongyuan
Origin	China
HS Code	84552210
Production Capacity	20sets/Month

Product Description

Factory Prices Making Building Material Wall Panel Metal Roofing Sheet Roll Forming Machine for Sale

Our Advantages

Why choose this machine?
1. Certificate: ISO 9001, CE,2. Lifetime seivices3. 72mm diameter solid steel shaft. Roller cover with 0.05mm chrome; Lifetime>10years.4. Introduced Mitsubishi PLC with touch screen to machine controll system.5. One worker operation (minimum) 6. Heat treatment:Cutting blade. Quenched treatment: Cr12 mould steel cutter7. Product cut-to-length.8.Technician overseas installing and training available

Plane Grinding Machine-Mainly uses in processing the cutting blades,

punching blade, etc. to achieve high flatness.

10m Frame Slotting & Milling Machine-Mainly uses in processing the surface of machines' frame to improve the flatness.

CNC Center-All the rollers are processed by the CNC machines with high accuracy.

Controller: Controller is the "CPU" of forming machine. We choose Mitsubishi PLC from Japan. With touch screen mode, let your workers enjoy the easy operation; With auto working mode, let your workers free their hands!Quality by ZhongyaunZhongyuan is certified according to the standards ISO 9001: 2008 and EN982: 2008, EN ISO12100-1: 2003, EN ISO 14121-1: 2007.

Product Parameters

Technical parameter

Item		Specification
Raw Material	Type	Pre-painted steel coil & galvanized coils
	Thickness(mm)	0.3-0.7
	Yield strength(mpa)	235-550
Roller material		45# steel , coated with Chrome
Shaft for rollers		Solid shaft with 72mm,processed with cylindrical grinder
Forming speed(m/min)		About 30-35
Output speed(m/min)		About 12 for 6m length sheet
Speed adjusting mode		Mitsubishi frequency transformer
Roller drive		Decelerating motor + Chain drive
Cutting mode		Hydraulic cutting
Cutter material		Cr12 mould steel
Length measurement		Nemicon Encoder
Control mode		Mitsubishi PLC
Operating mode		Button + Mitsubishi Touch screen
Main motor power(kw)		7.5KW
Total power(kw)		9.9 KW
Components of machine
Decoiler (manual decoiler and hydraulic decoiler for option)		1set
Feeding & guiding device		1set
Main roll forming machine		1set
Hydraulic cutting system		1set
Controlling system		1set
Run out table (auto. Stacker for option)		1set

Process flow: Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting - product to run out table

Packaging & Shipping

1.1*40GP container for loading one set machine with decoiler.2. Main machine body and decoiler is load naked (tighten to container with steel wire rope).3. Spare parts and operating tools are loading in tooling box.Delivery : about 90 days

Hot Product

Company Profile

20 years history in Metal roll forming machine industry25 years experienced engineersFocus on machine quality with reasonable price59 sets processing equipment, including in 12 sets CNC tooling machines. Experienced technician can be sent to install machines abroad100+ sets of machines exported each year66+ countries using Zhongyuan MachinesZhongyuan Machinery Factory is much experienced manufacturer of metal forming machinery with ISO quality system. " All-in-house source" - from raw material to the final high-precision roll forming machine,all done in Zhongyuan machinery factory. So that we can control our made roll forming machines quality and delivery time of roll forming machines. Our R&D department is staffed with senior engineers who have 25 years experience in metal forming machine industry. Zhongyuan company has built a competitive cost advantage through the model of trying large-scale manufacturing and centralized procurement. In the past, present and future, as a well-known metal forming equipment manufacturer in China, Zhongyuan has always been customer-centric, strives for survival by quality, insists on the selection of high-standard raw materials and high-quality accessories, and implements strict process standards and quality standards. To ensure the safety and reliability of product performance, and continue to provide our customers and friends with highly cost-effective products and services.

FAQ

1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.3) Q: How is your after sales support? A: We provide technical support on line as well as overseas services by skillful technicians.4) Q: How does your factory do regarding quality control? A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,2) We welcome your visit us and test machine by yourself in our factory.6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided).
