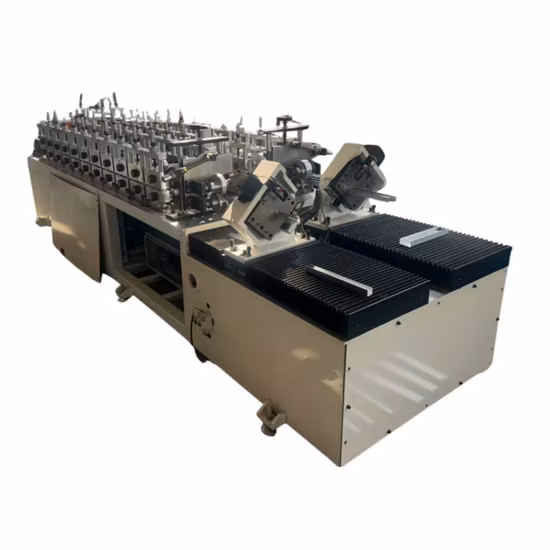

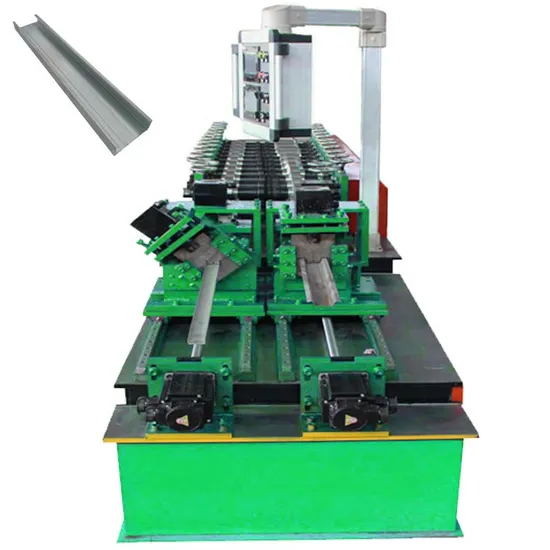

Metal Stud C Channel Light Gauge Steel Keel Framing Machine

Basic Info.

Model NO.	XHH-C160
Customized	Customized
Condition	New
Control Type	Ipc Computer Controlling System
Automatic Grade	Automatic
Hydraulic Motor Power	11kw
Voltage	380V/ 50Hz/ 3pH
Motor Power	15kw
Effective Width	160mm
Molde Change	Auto Change
Material Strip Thickness	0.8-2mm
Material for Puncher	SKD-11
Shaft Material	SKD-11
Material for Cutter	SKD-11
Control System	Ipc Computer Controlling System
After-Sales Service Provided	Engineers Available to Service Machinery Overseas
Transport Package	Paking
Specification	5400*1300*1600mm
Trademark	XHH
Origin	Fujian, China(Mianland)
HS Code	84552290
Production Capacity	20stes/Month

Packaging & Delivery

Package Size 510.00cm * 160.00cm * 110.00cm Package Gross Weight 4000.000kg

Product Description

Main Technical Data

Size	C160
Dimension	5400*1300*1600mm
Main Servo Motor Power	15KW
Hydraulic Motor	11kw
Forming Steps	12Steps
Forming Speed	4-7tons/8hours
Voltage	380V/50HZ/3PH
Effective Width	160mm
Material Width	255mm
Flange Height	41mm
Lip	9mm
Material Thickness	0.8-2.0mm
Tolerance for cutting and punching	±1mm
Tolerance for forming	±1mm
Control System	IPC Computer Controlling System
Design Software	Vertex Software
Material for All Roller	SKD-11 steel with heat treatment, plate hard chrome on the surface of rollers
Material for Shaft	SKD-11
Material for Puncher	SKD-11
Material for Cutter	SKD-11

Main Accessories

1 Main Forming Machine

2 3 Tons Hydraulic Uncoiler

3 Servo Motor System

4 IPC Computer Controlling System (Lenovo Laptop)

5 Production Software (1set)

6 Design Software-Vertex,forever using license

7 Hydraulic Automatic Punching Device (Web/Lip Notch,Swage,Service Hole,Chamfer,Dimple,Bolt Hole)

8 Hydraulic Post-cutting Device (Material:SKD-11)

9 Automatic Printing Device

10 Run Out Table (4m)

11 Operation Manual

Related Products
Rollex-2020
XHH C63-140
XHH-C75
XHH-89-JC Model
XHH-89-5S Model
XHH-140 Model
XHH-310 Model

Q1.Are you a trading company or manufacture.1A: We are a factory.Q2. Do you provide samples ? Is it free or extra ?2A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.We could offer the sample for free charge3Q: Where is your factory located?3A: Our factory is located in Xiamen City, Fujian Province, China. You are warmly welcome to visit us !4Q: Can you make the machine according to my design or prototype?4A: Yes. We have an professional designer for working out the most suitable design and production plan for the machine that you are going to book with us5Q: How can I trust you that machines pasted testing running before shipping?5A: 1) We record the testing video for your reference. 2) You are welcome to visit us and test machine in our factory. 6Q: Do you provide installing and training overseas?6A: Overseas machine install and worker training services are optional.7Q: How is your after sales support?7A: We provide technical support on line as well as overseas services by skillful technicians.8Q: Guarantee period:8A: Within one year since the date of finishing commissioning.
