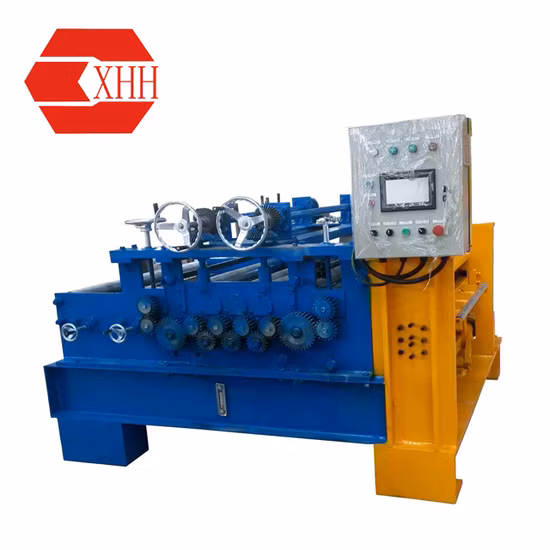

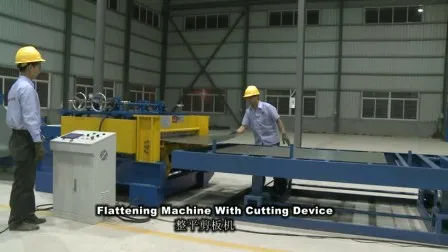

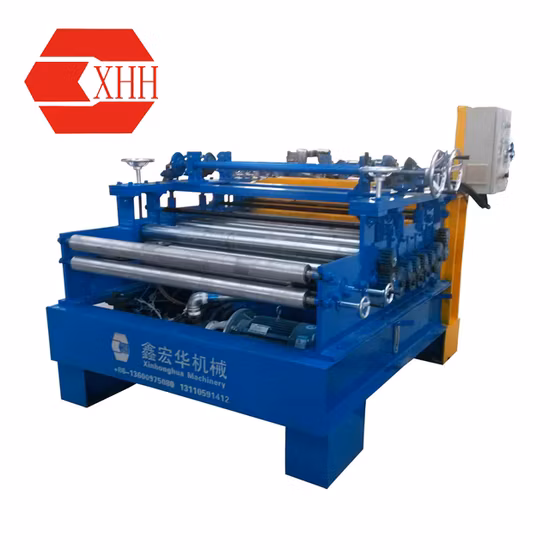

Flattening Machine with Automatics Slitting & Cutting Device (FCS2.0

Basic Info.

Model NO.	FCS2.0-1300
Condition	New
Warranty	1 Year
Model Number	Zp2.0-1300
Weight	3500kgs
Max.Thickness	2.0mm, 2.5mm, 3.0mm
Export Markets	Global
Max.Width	1300mm,1500mm
Hydraulic Motor Power	7.5kw
Dimension	2200*2300*1500mm
Working Speed	10-15m/Min
Model No.	Fcs2.0-1300
Brand Name	Xhh
Transport Package	Standard Package for Export
Specification	2200*2300*1500mm
Trademark	XHH
Origin	Xiamen, China
HS Code	84552290
Production Capacity	10-15sets/Month

Packaging & Delivery

Package Size 220.00cm * 230.00cm * 150.00cm Package Gross Weight 3500.000kg

Product Description

Aluminium Straightening Slitting Cutting Machine FCS2.0-1300:
1. Specifications of metal sheet slitting machine
1). Main Accessories:
(1) Main machine;
(2) Automatic Up And Down Table For Feeding Device;
(3) Flattening Device;
(4) Hydraulic Motor System;
(5) PLC Computer Controlling System With Touching
Screen( Brand: Schineder for PLC, touching screen, encorder and frequency changer );
(6) Hydraulic Cutting Device;
(7) Receiving Table( Length:2500mm);
(8) Tools;
(9) Operation Manual in English;
2). Main Technic Data:

Model Number	ST1.0-1200	FCS2.0-1300
Size	2500*1600*1500mm	2200*2300*1500mm
Weight	2500KGS	3500KGS
Hydraulic Motor Power	4KW	7.5KW
Processing Speed	8-10m/min	10-15m/min
Voltage	380V/50HZ/3PH	380V/50HZ/3PH
Material Thickness for Aluminum	0.4-1.0mm	0.25-2.0mm
Material Thickness for Steel	0.4-0.8mm
Material Width	400-1200mm	1300mm
litting Tapered Ratio	1:50
Usage	Slitting and cutting the metal sheets with straight and tapered shape

3). Usage:
--fattening and cutting the metal materials: Carbon steel Hot rolled coils;
--The buyer need provide enough metal materials for testing machine.
4). Feature:
--Adopts flattening device, cutting device, PLC computer controlling system and hydraulic motor,
easily and conveniently to operate;
--Suitable to flatten and cut the colored prepainted sheets, alvanized steels, Aluminum sheets, etc

Q1.Are you a trading company or manufacture.
1A: We are a factory.
Q2. Do you provide samples ? Is it free or extra ?
2A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.We could offer the sample for free charge
3Q: Where is your factory located?
3A: Our factory is located in Xiamen City, Fujian Province, China. You are warmly welcome to visit us !
4Q: Can you make the machine according to my design or prototype?
4A: Yes. We have an professional designer for working out the most suitable design and production plan for the machine that you are going to book with us
5Q: How can I trust you that machines pasted testing running before shipping?
5A: 1) We record the testing video for your reference.
2) You are welcome to visit us and test machine in our factory.
6Q: Do you provide installing and training overseas?
6A: Overseas machine install and worker training services are optional.
7Q: How is your after sales support?
7A: We provide technical support on line as well as overseas services by skillful technicians.
8Q: Guarantee period:
8A: Within one year since the date of finishing commissioning.
